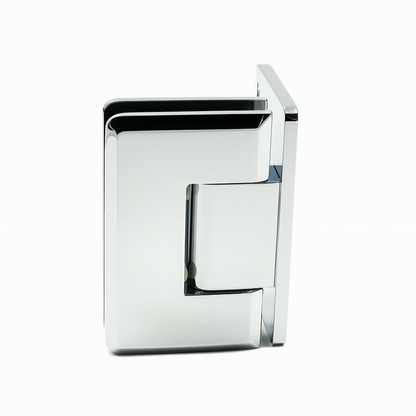

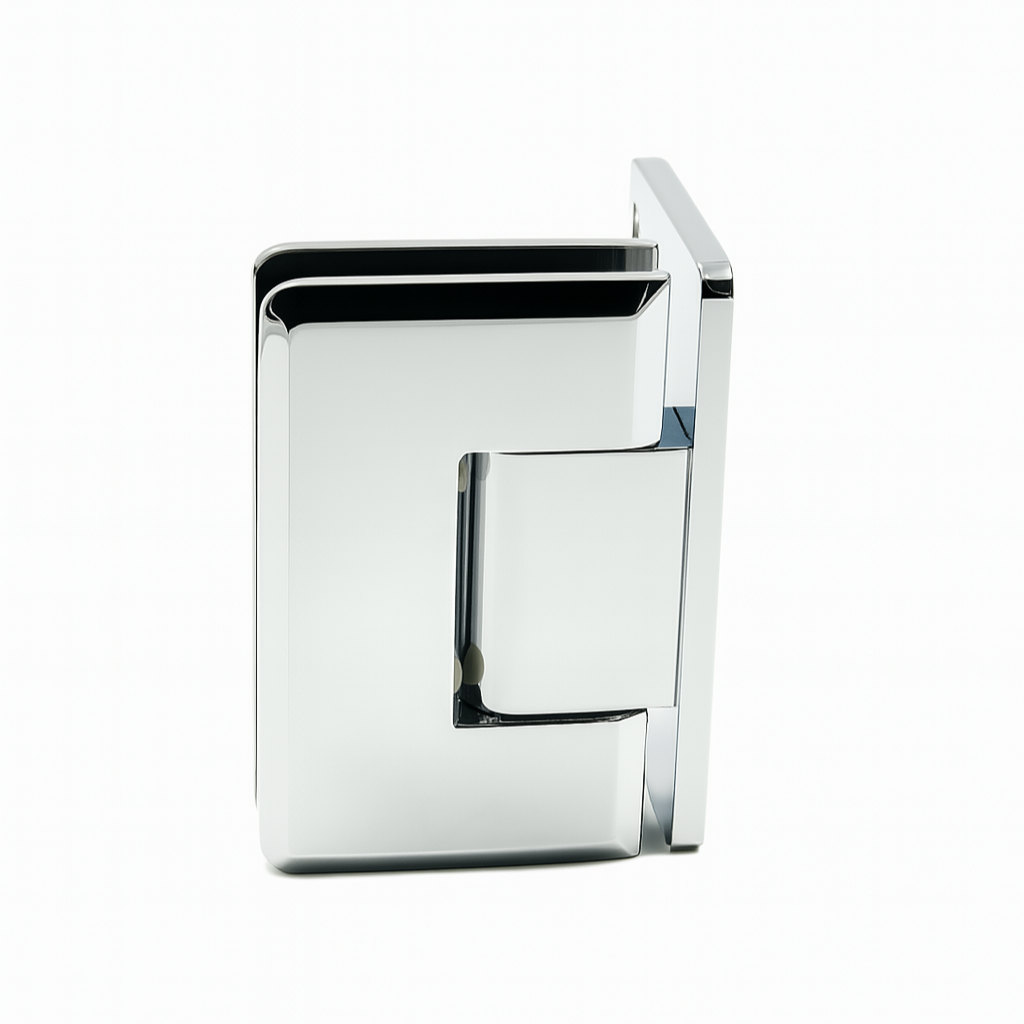

Offset Plate Wall-to-Glass 90° | Frameless Shower Hinge | Polished Chrome

Heavy-duty offset-plate 90° hinge for mounting a shower door to a wall or fixed panel. Solid brass construction with smooth self-centering when the door is within 25° of closed. Rated for larger panels and 10–12 mm glass.

• Finish: Polished Chrome

• Material: Brass

• Mounting Type: Wall-to-Glass (Offset Plate)

• Opening Angle: 90°

• Self-Centering: Within 25° of closed

• Weight of Door: Up to 60 kg using two hinges

• Glass Width: Max 914 mm

• Glass Height: Max 2200 mm

• Glass Thickness: 10–12 mm tempered

Package Includes: 1 hinge

🔔Please note: All hinges are sold individually (per unit), not as a pair.
