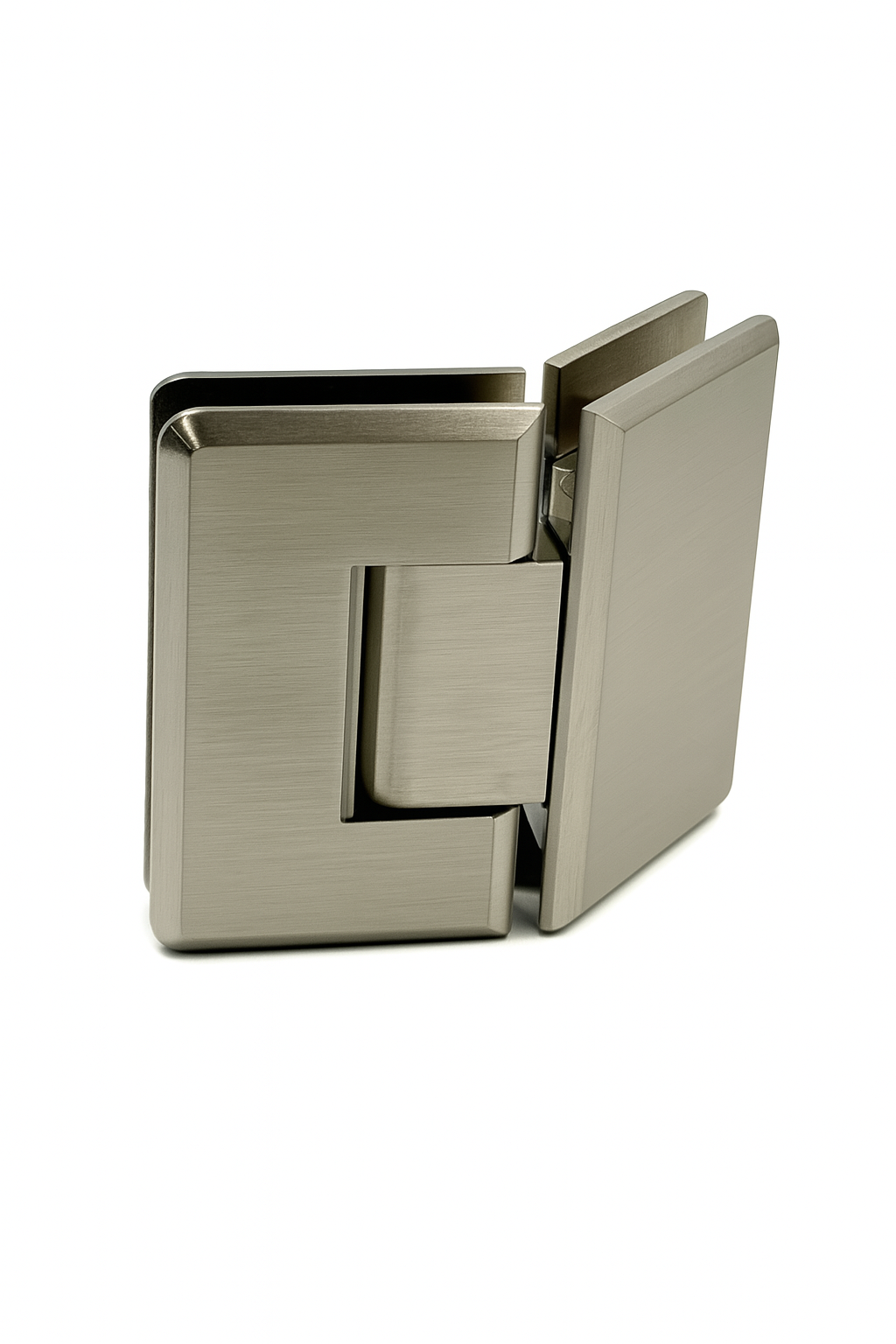

Glass-to-Glass 135° | Frameless Shower Hinge | Satin Nickel

135° swing hinge for mounting a shower door to a fixed sidelight. Solid brass construction provides smooth action and self-centering near the closed position.

• Finish: Satin Nickel

• Material: Brass

• Mounting Type: Glass-to-Glass (door to fixed sidelight)

• Opening Angle: 135°

• Self-Centering: Within 25° of closed

• Door Weight: Up to 35 kg using two hinges

• Glass Width: Max 750 mm

• Glass Height: Max 2100 mm

• Glass Thickness: 8–10 mm tempered

Package Includes: 1 hinge

Please note: All hinges are sold individually (per unit), not as a pair.

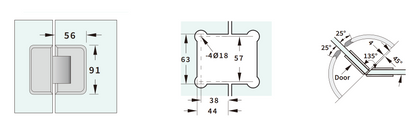

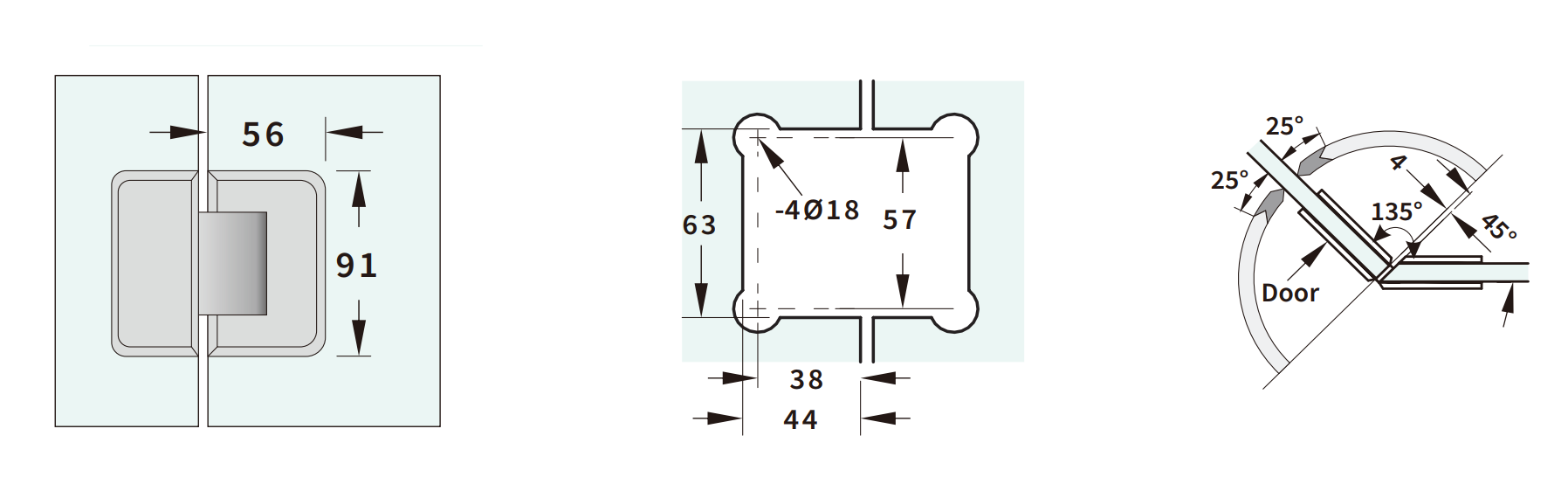

Note: Same cut-out detail for both panel, measured from outside edge.
