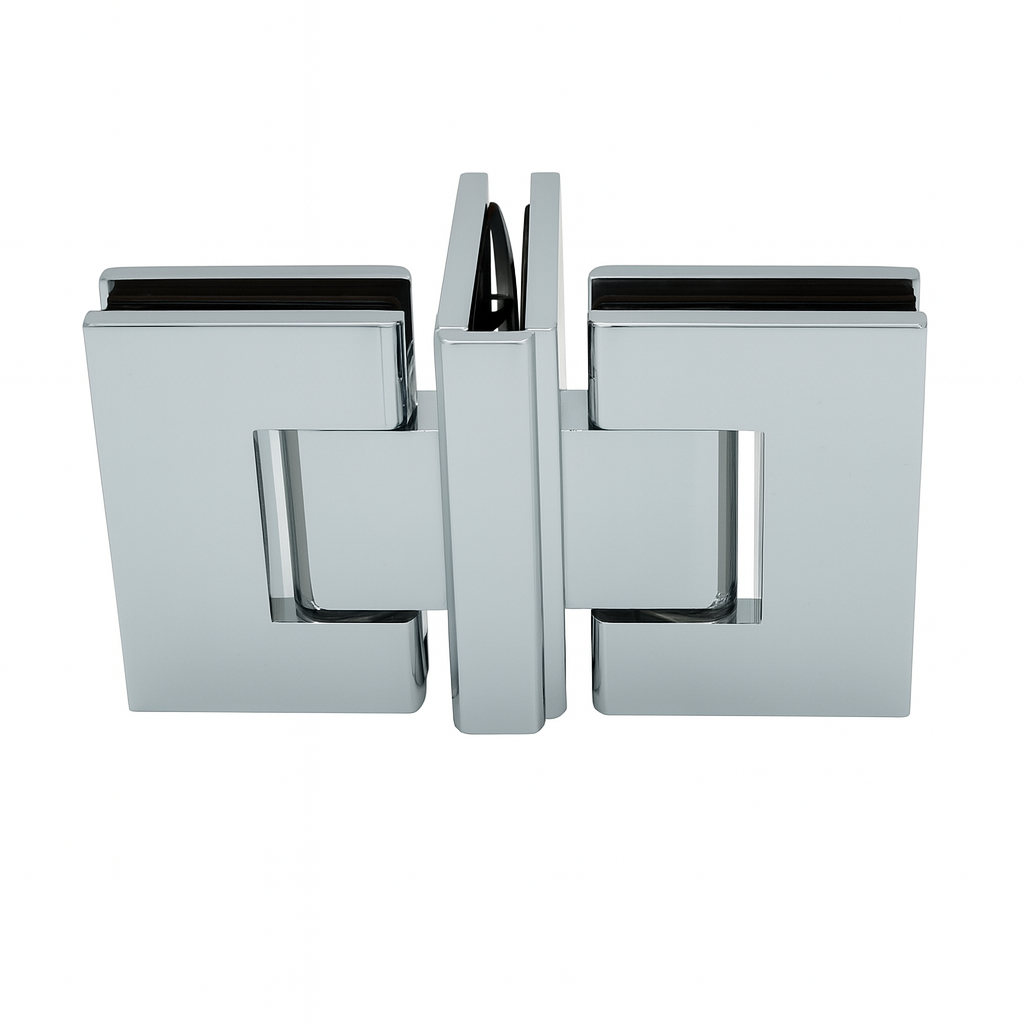

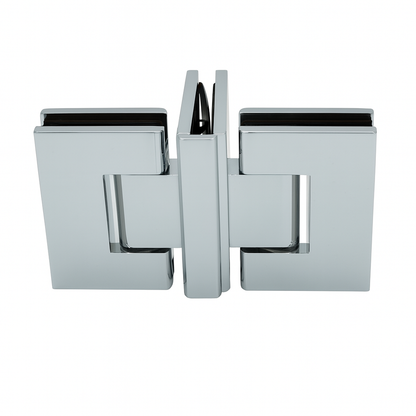

SH-005S-CP — 'T' Configuration Double Door Partitions (Enclosures)— (Polished Chrome)

Solid brass hinge for mounting a swinging shower door to a fixed sidelight. Delivers smooth, reliable action with self-centering when the door is within 25° of the closed position.

• Catalog Code: SH-006S-CP

• Finish: Polished Chrome

• Material: Brass

• Mounting: Glass-to-Glass (door to fixed sidelight)

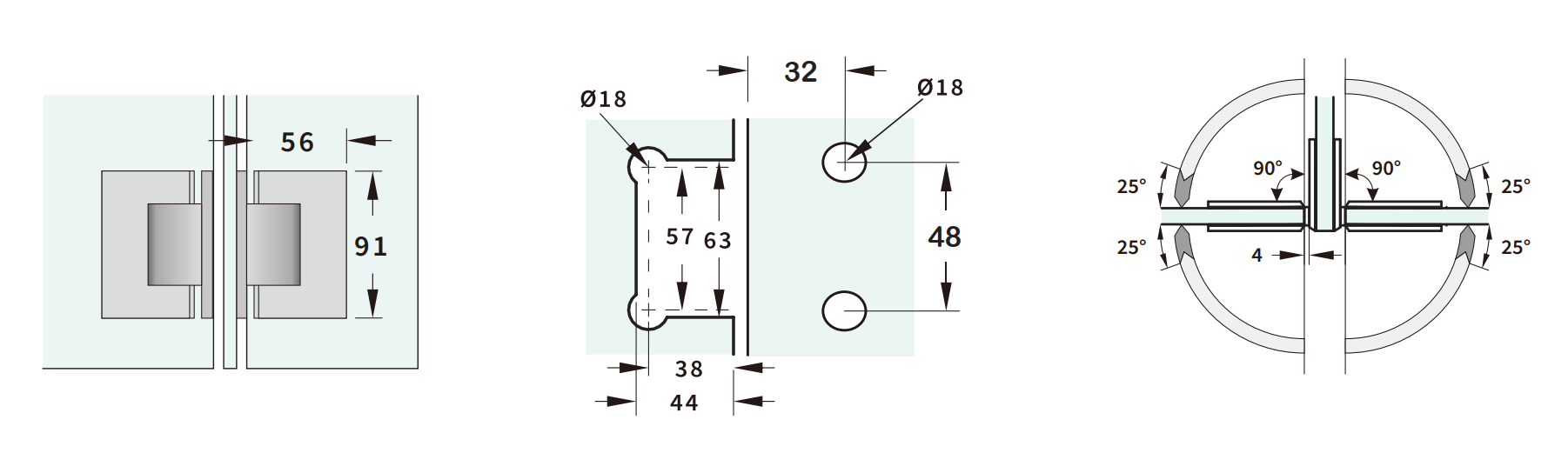

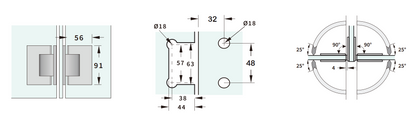

• Opening Angle: 180°

• Self-Centering: Within 25° of closed

• Door Weight: Up to 35 kg using two hinges

• Max Glass Size: 750 mm (W) × 2100 mm (H)

• Glass Thickness: 8–10 mm tempered

Package Includes:

• 1 Pack — contains 1 PC Hinge

⚠️ Please note: All hinges are sold individually (per unit), not as a pair.
