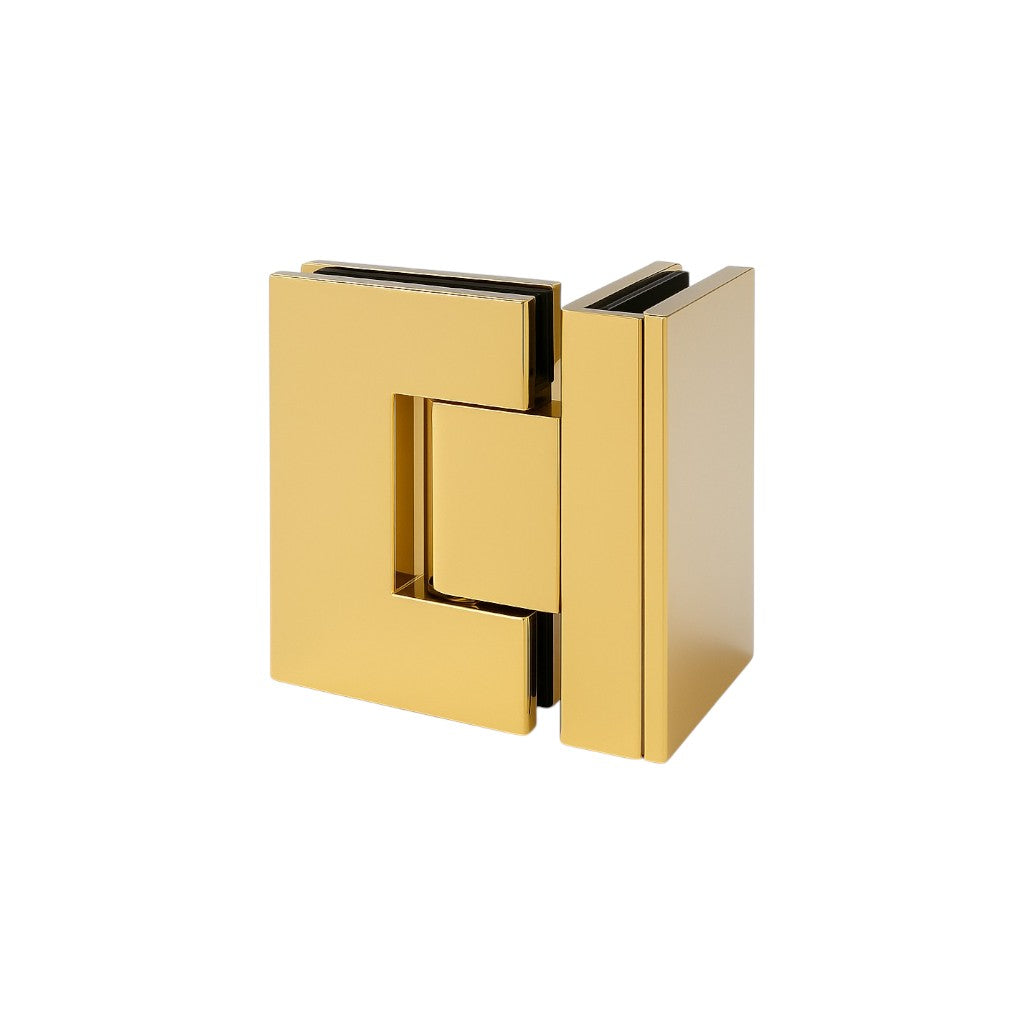

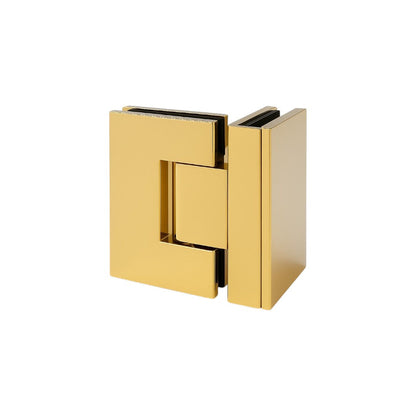

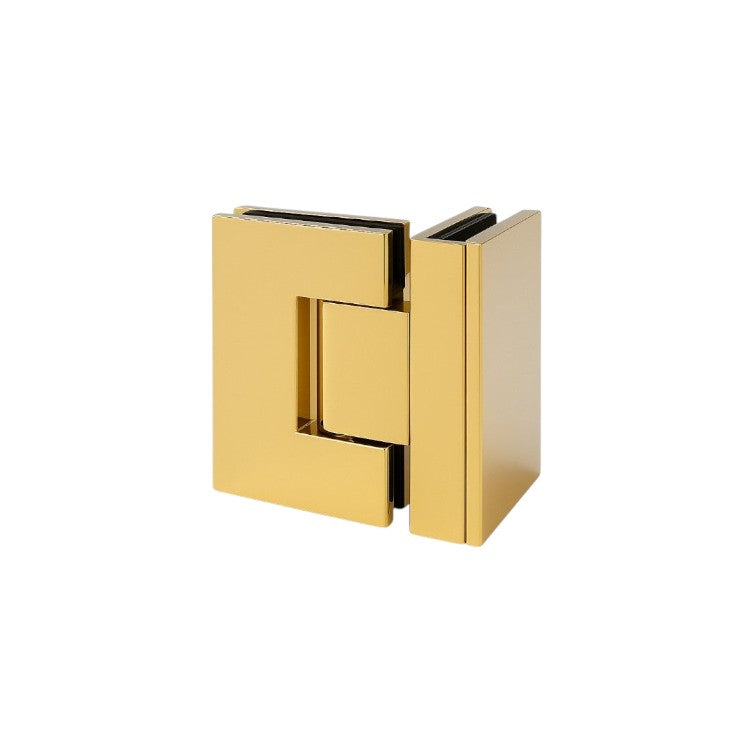

Glass to Glass 90° | Frameless Shower Hinge | Polished Gold

Glass-to-glass 90° swing shower door hinge has a load capacity of 35 kg. Designed for mounting doors to a fixed sidelight, it supports glass panels up to 0.75 x 2.10 m. The hinge is suitable for frameless shower enclosures and ensures smooth operation with self-centering functionality when within 25° of closed position.

• Catalog Product Code: SH-003S-PG

• Finish: Polished Gold

• Material: Brass

• Weight of door: 35kg using 2 hinges maximum

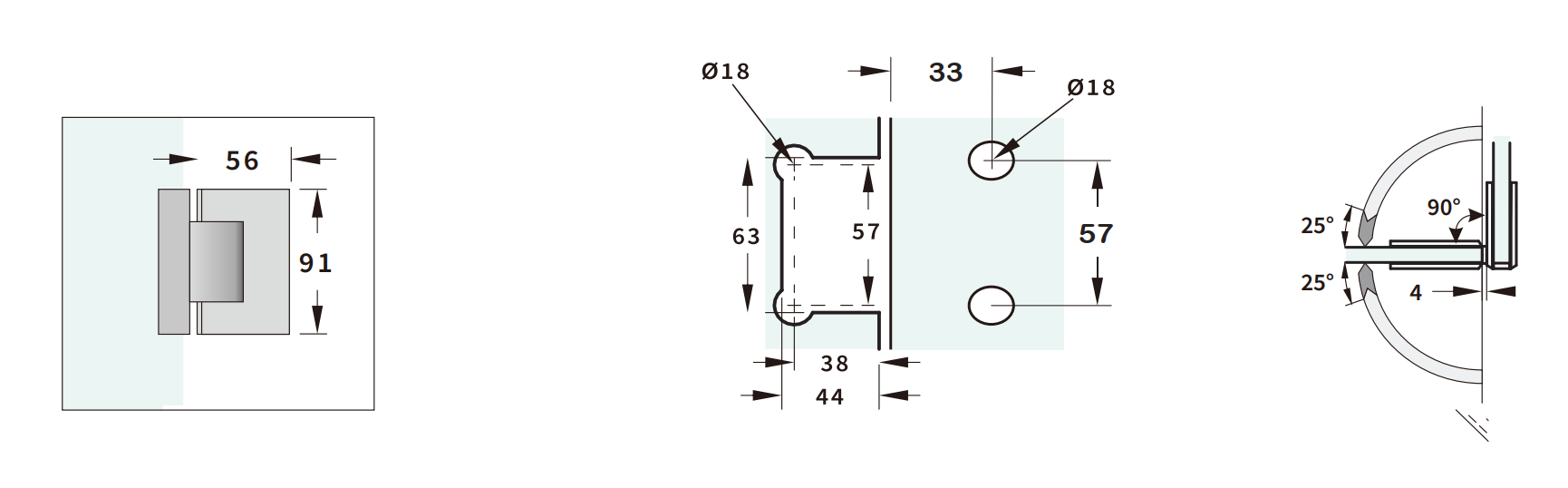

• Glass Width: maximum 750mm

• Glass Height: maximum 2100mm

• Glass Thickness: 8mm–10mm

• Opening angle: 90°

• Mounting Type: Glass-to-Glass

• Closing Type: Self-centering when within 25° of closed position

Package Includes:

• 1 Pack — contains 1 PC Hinge

⚠️ Please note: All hinges are sold individually (per unit), not as a pair.
