Offset Plate Wall to Glass 90° | Glass Corner Clamp Bracket for Shower Panel | Frameless Shower Fittings | Antique Brass Finish

Glass wall 90° swing shower door hinge has a load capacity of 35 kg. Doors up to 0.75 x 2.10 m can be realized. The hinge is designed for right-angled corner showers and recess showers. It is screwed to the wall using two slotted holes and a securing hole.

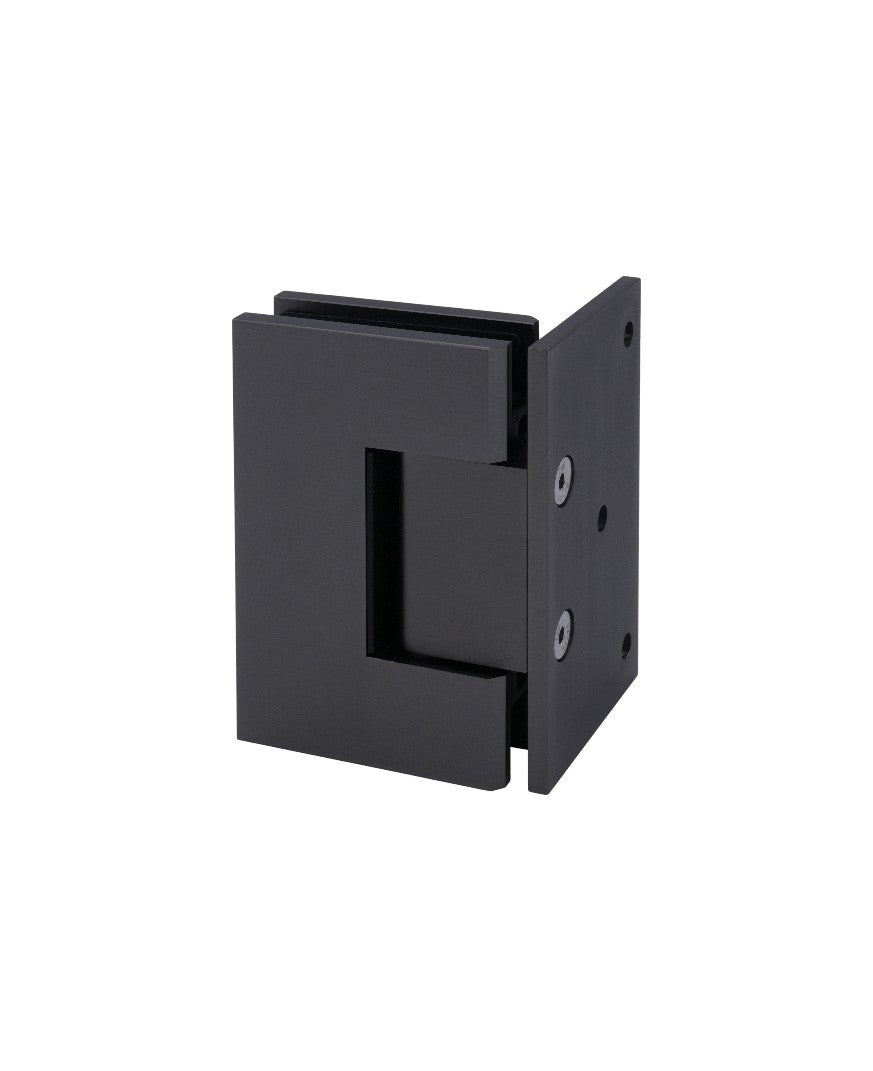

• Catalog Product Code: SH-002S-GM

• Finish: Gun Metal

• Material: Brass

• Weight of door: 35kg using 2 hinges maximum

• Glass Width: maximum 750mm

• Glass Height: maximum 2100mm

• Glass Thickness: 8mm–10mm

• Opening angle: 90°

• Wall connection: On both sides

• Mounting Type: Glass-Wall

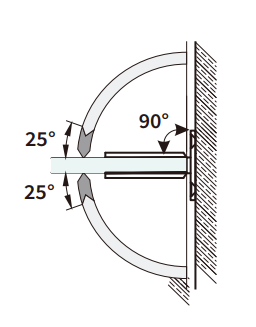

• Self-centering: within 25° of closed position

Package Includes:
✅ 1 Pack — contains 1 PC Hinge

🔔 Please note: All hinges are sold individually (per unit), not as a pair.
