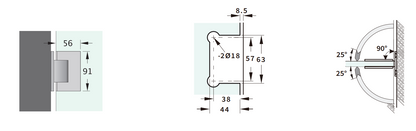

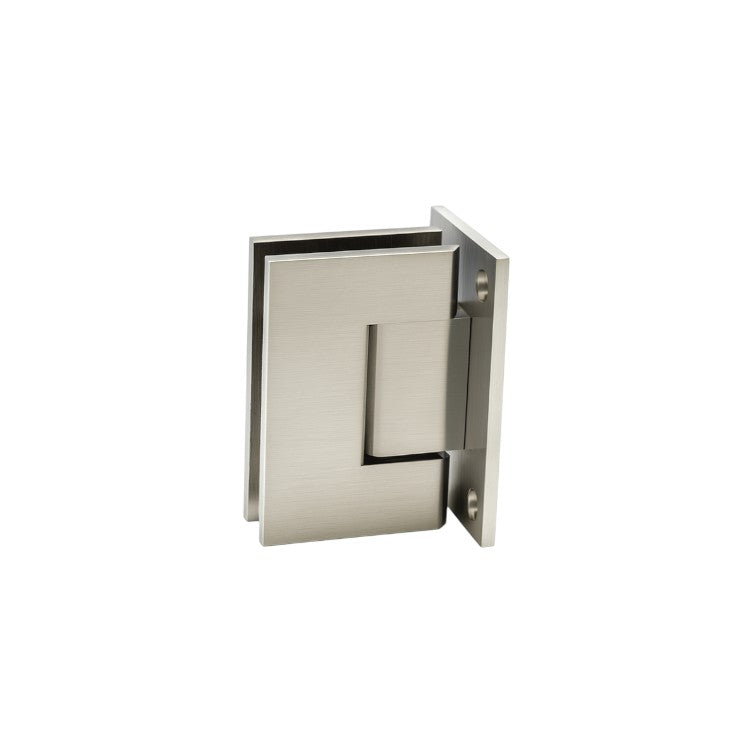

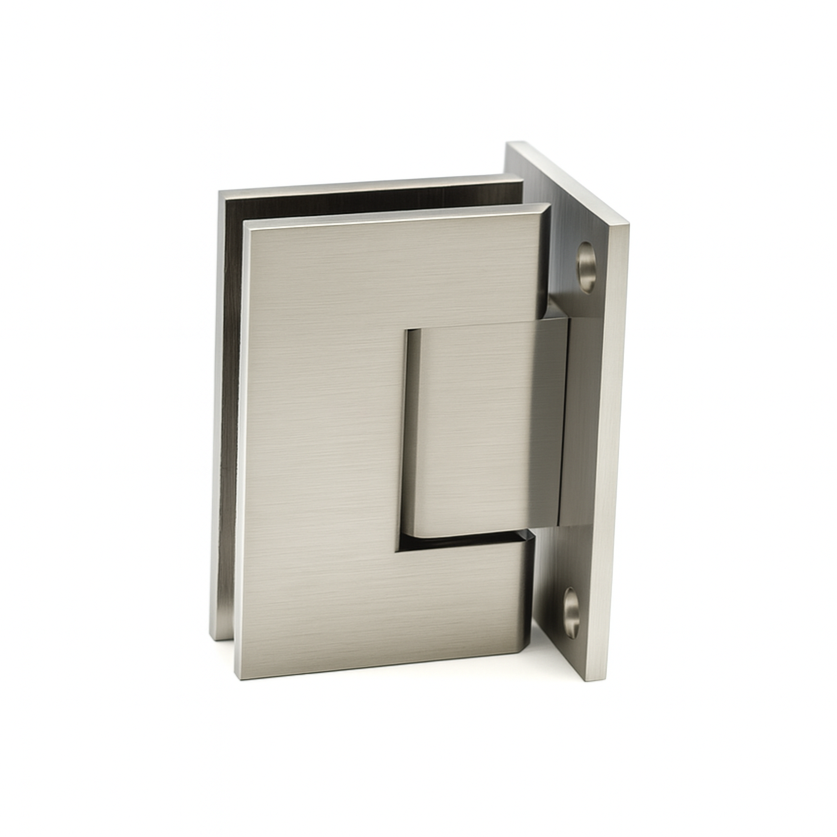

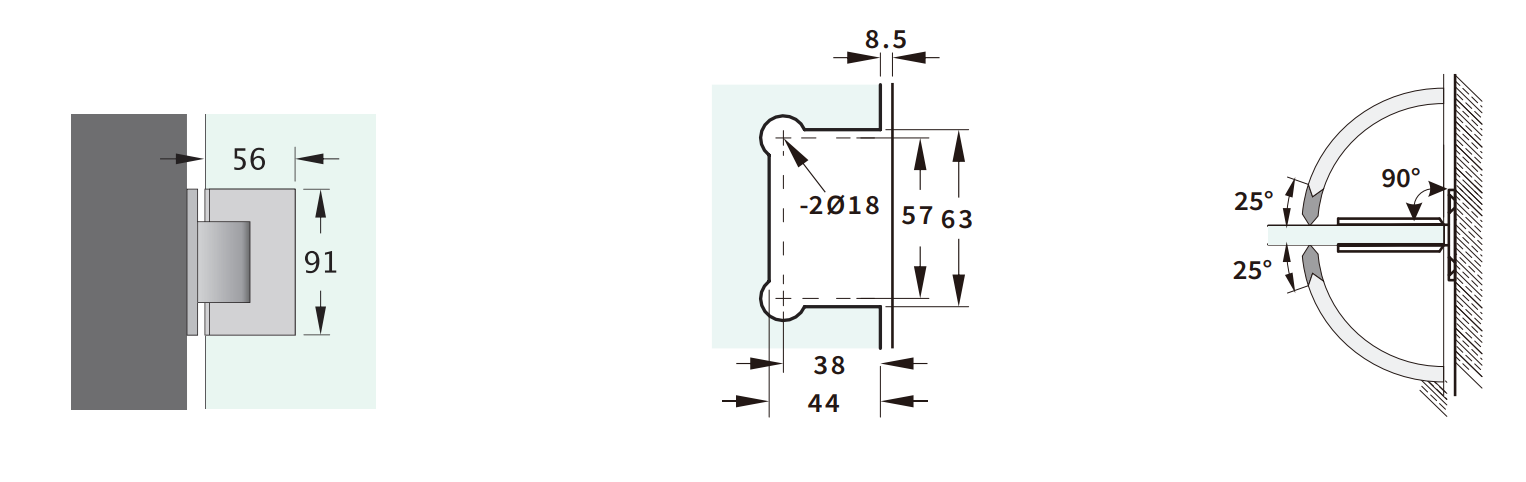

Full Plate Wall to Glass 90⁰ | Glass Corner Clamp bracket for Shower Panel | Frameless Shower Fittings | Satin Nickel Plated Finish

Glass wall 90° swing shower door hinge has a load capacity of 35 kg. Doors up to 0.75 x 2.10 m can be realized. The hinge is designed for right-angled corner showers and recess showers. It is screwed to the wall using two slotted holes and a securing hole.

• Catalog Product Code: SH-001S-SNP
• Finish: Satin Nickel Plated
• Material: Brass
• Weight of door: 35kg using 2 hinges maximum
• Glass Width: maximum 750mm
• Glass Height: maximum 2100mm
• Glass Thickness: 8mm-10mm
• Opening angle: 90°
• Wall connection: On both sides
• Mounting Type: Glass-Wall
• Closing Type: Self-centering when within 25⁰ of closed position


Package Includes:
📦 1 Pack — contains 1 PC Hinge

🔔 Please note: All hinges are sold individually (per unit), not as a pair.
